Ceramic Strip Heaters
Specifications
Flat-shaped heaters are made on the basis of ceramic insulating blocks, through which a resistive wire passes. Thanks to ceramic insulating elements, the heating temperature of such heating elements reaches maximum values up to 500°C. Ceramic flat insulators have several sizes, thanks to which it is possible to manufacture heating elements of complex shapes and sizes. The heater is equipped with a stable metal housing and a heat-resistant wire for connecting to the mains.
Minimum width, mm: 50
Maximum width, mm: 400
Minimum length, mm: 120
Maximum length, mm: 1200
Thickness, mm: 12
Maximum electric power, W/cm²: 6
Power supply, V: 12, 24, 48, 110, 220/230, 400
Maximum operating temperature of the heater, °C: 500
Description

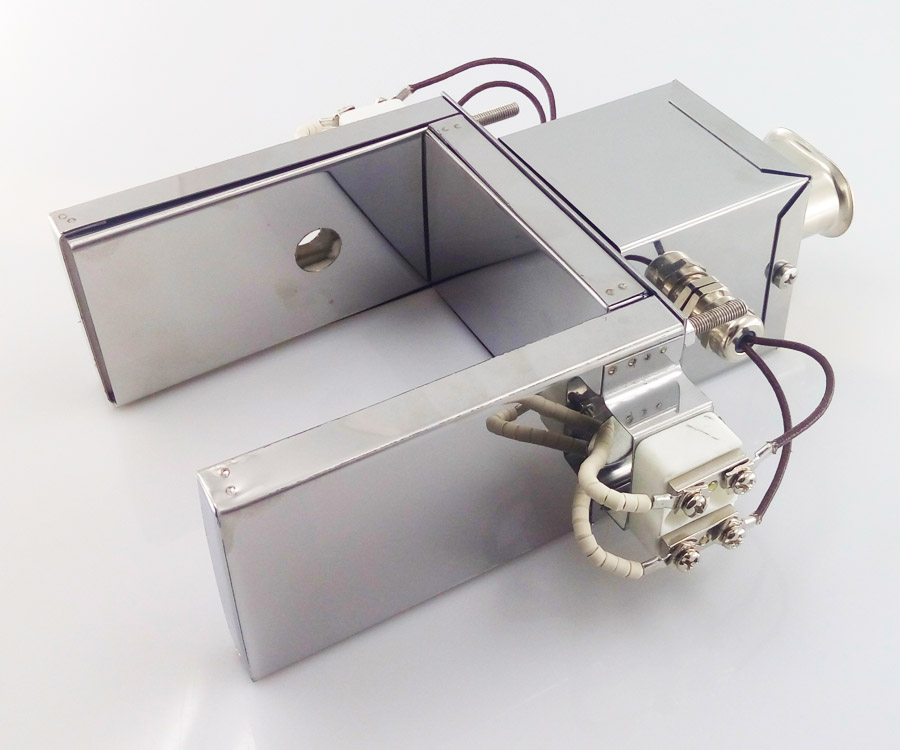

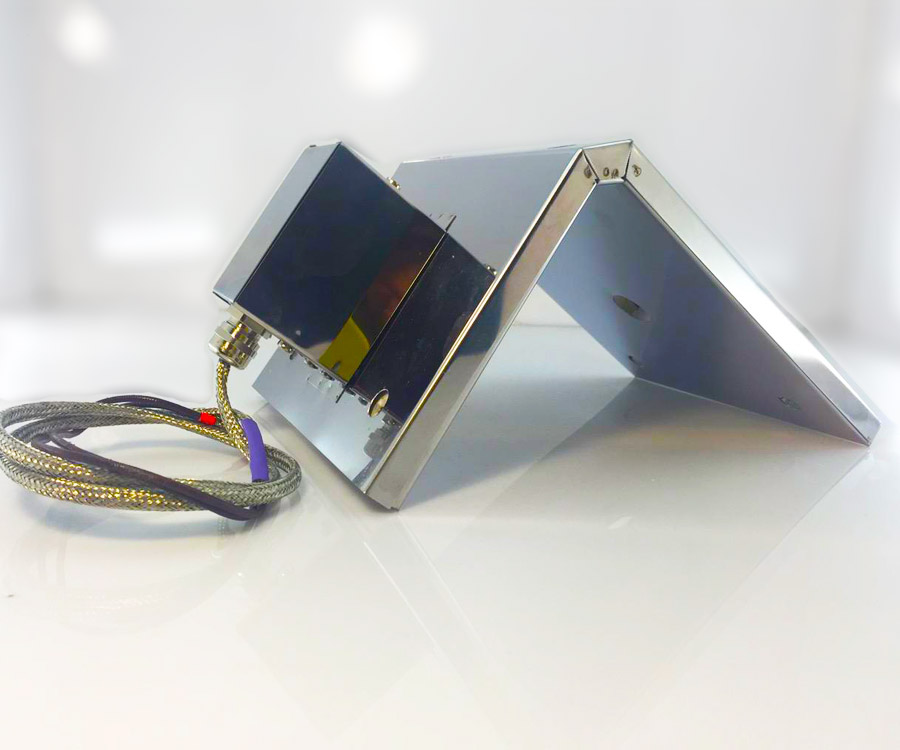

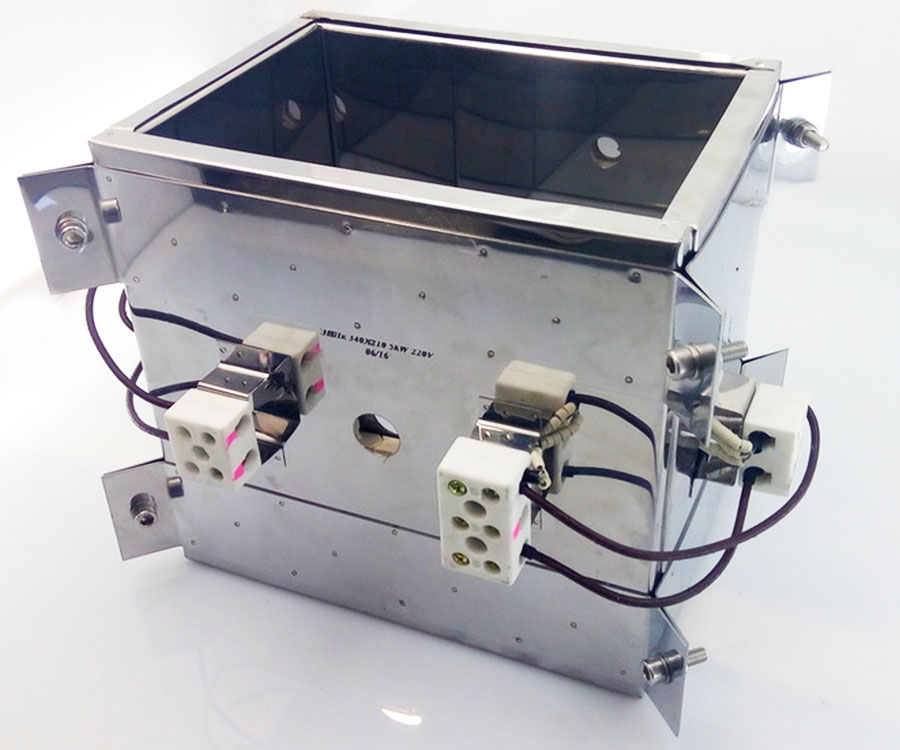

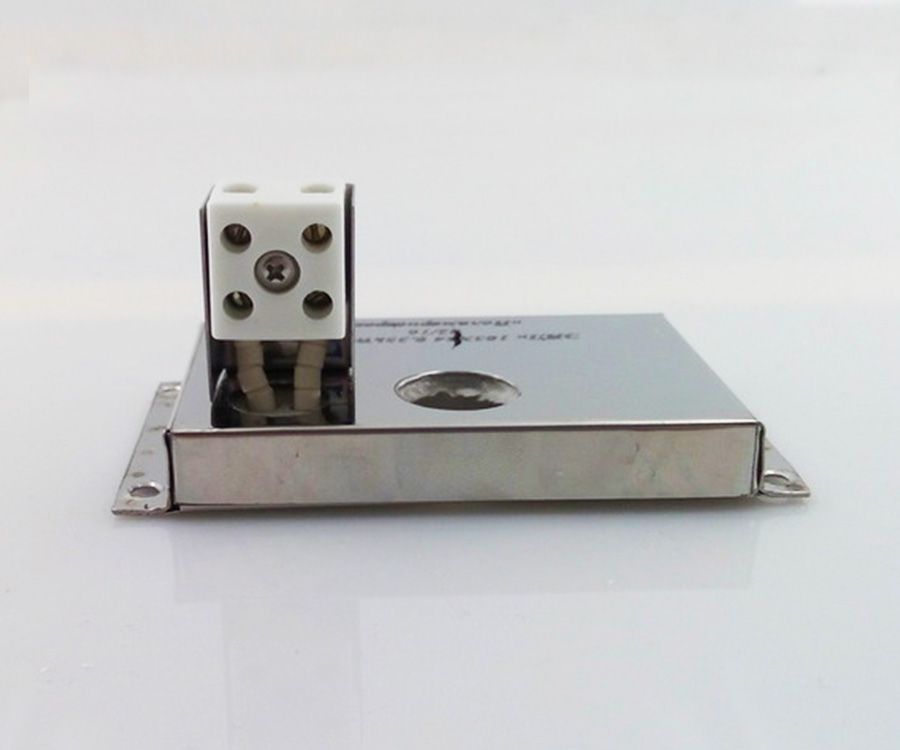

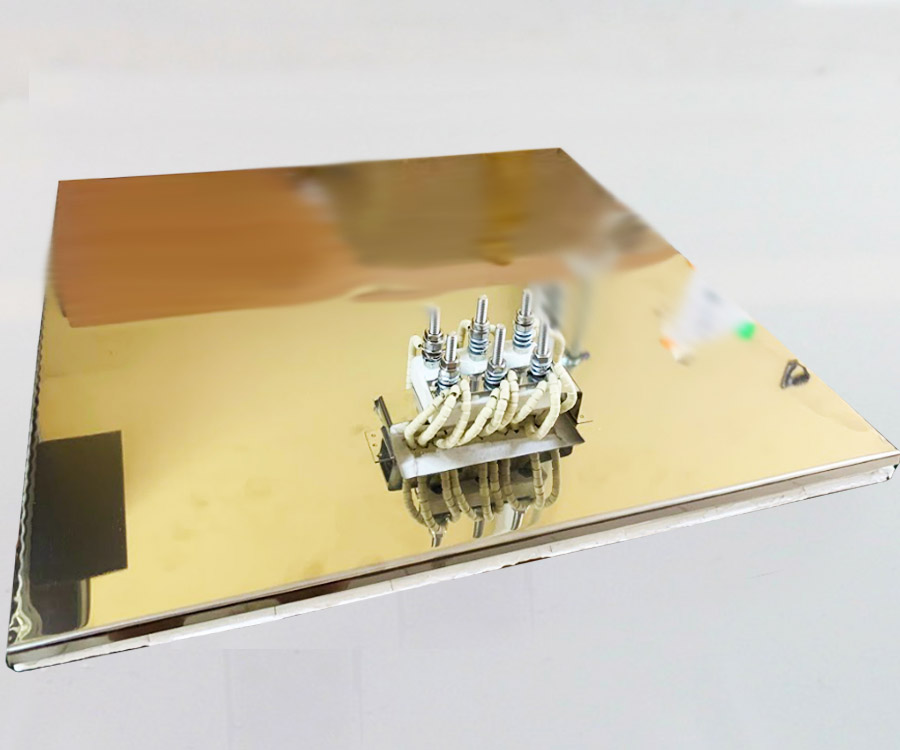

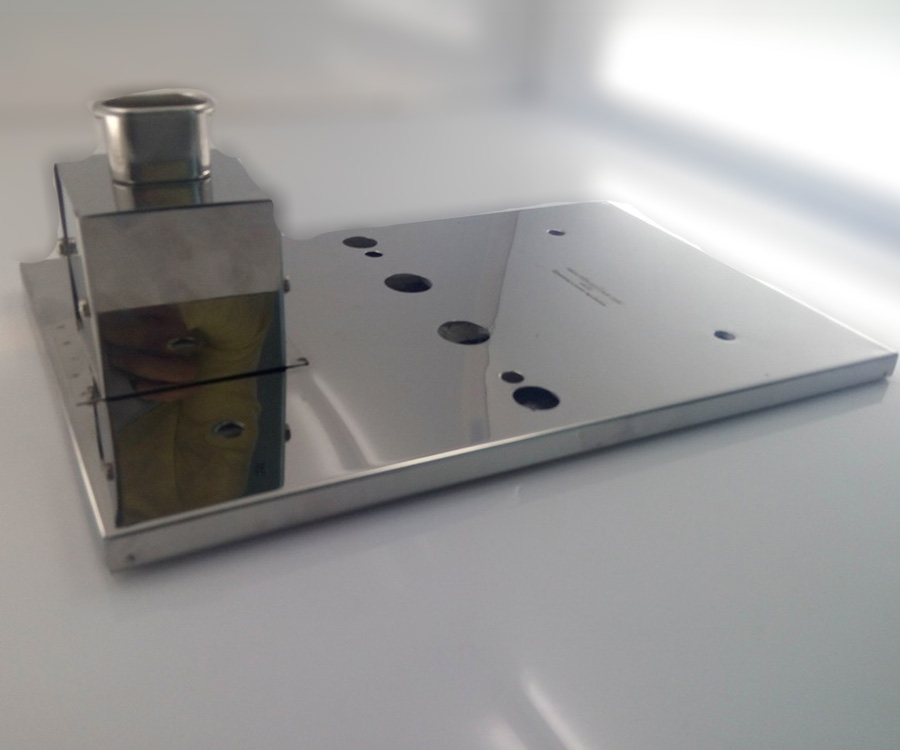

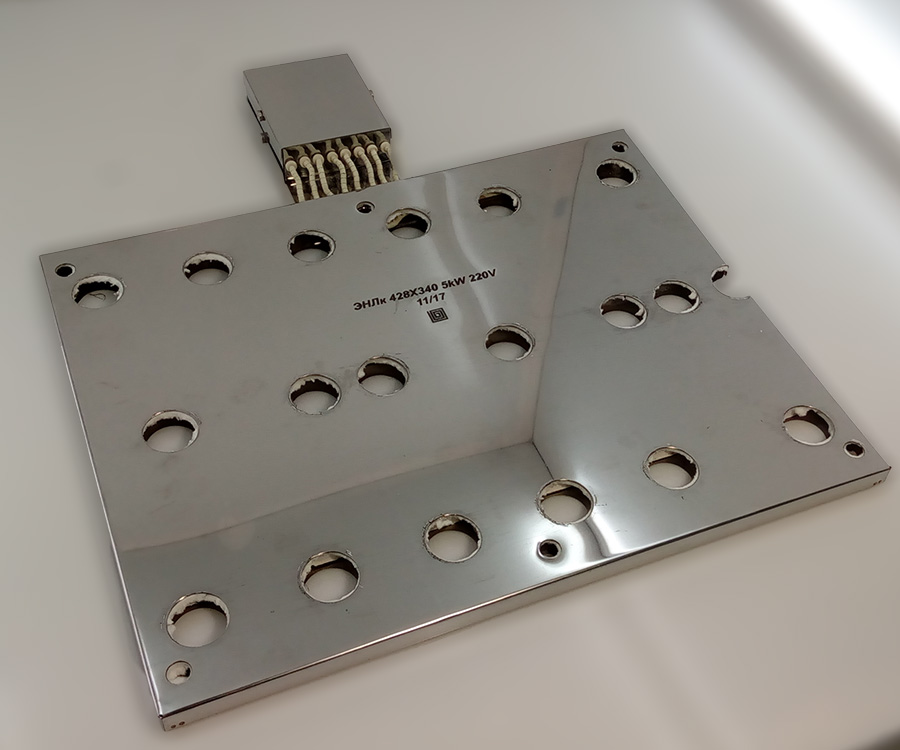

Flat heaters with a ceramic insulator are designed according to the size of the client, and can have complex shapes: M-shaped, venerable, consist of several blocks, while connecting into a single heating system. We manufacture the heater flat in complex shape, with through holes, built -in thermocouple and several types of conclusions for convenient operation and connection.
The scope of flat heaters is diverse: molds, TPA, flat sections of extruders, etc.
Ceramic flat heater have an operating temperature 500°C, with a specific power of 6 W/cm². A flat ceramic heater has a contact method of energy transmission, therefore, provide a complete contact of the heater with a heated surface.
You can order the manufacture of a flat heating element with a ceramic insulator on the site or by e -mail. The specialists of our company will help you choose the optimal type of device, quickly calculate the cost and provide a drawing of the product for familiarization. Electric gingers specializes in the production of industrial heating plants in individual sizes.

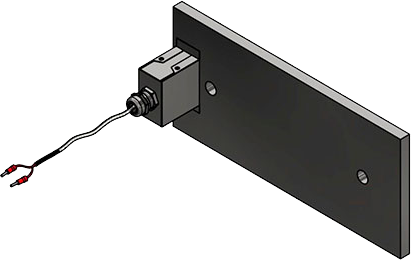

Drawing

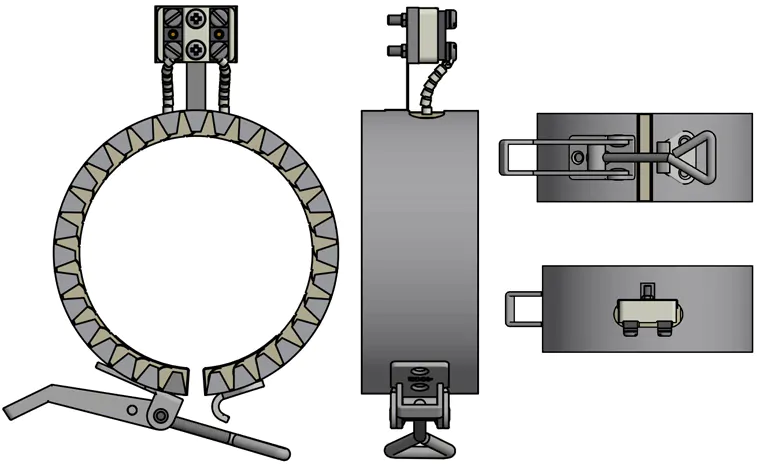

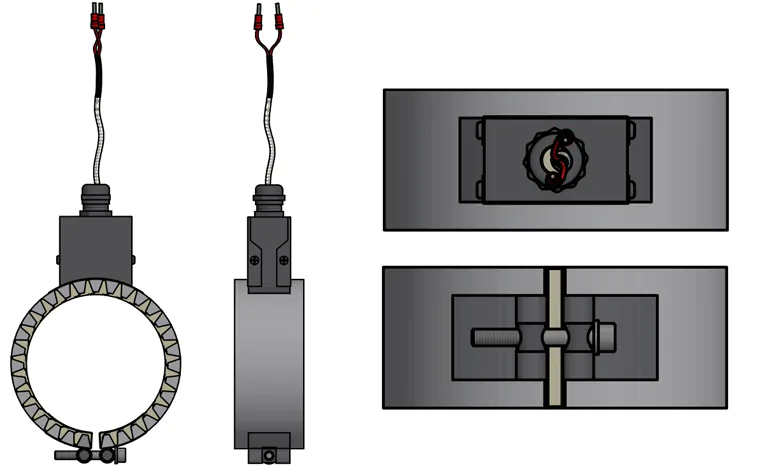

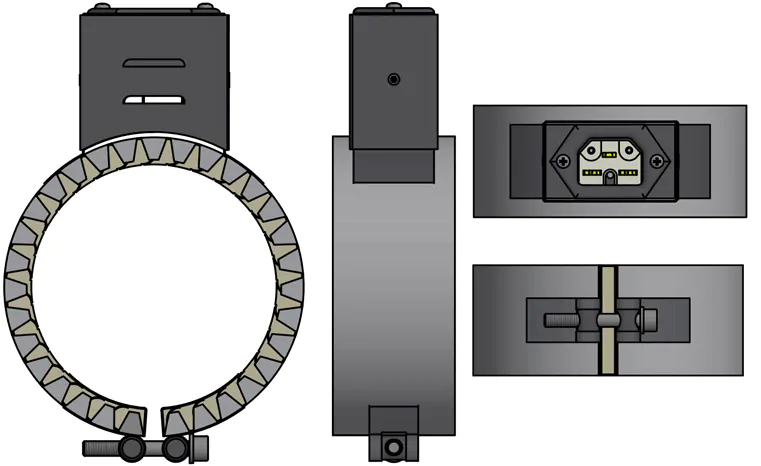

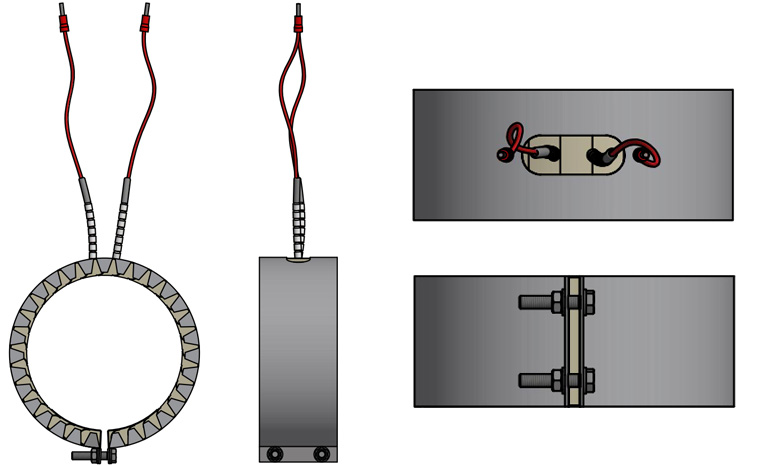

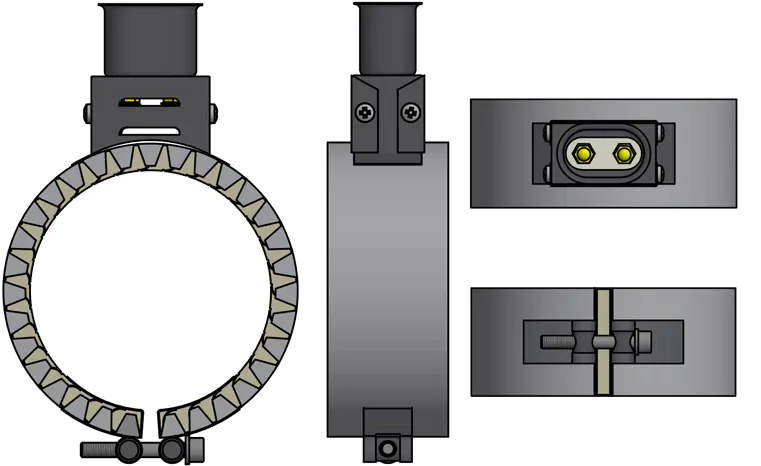

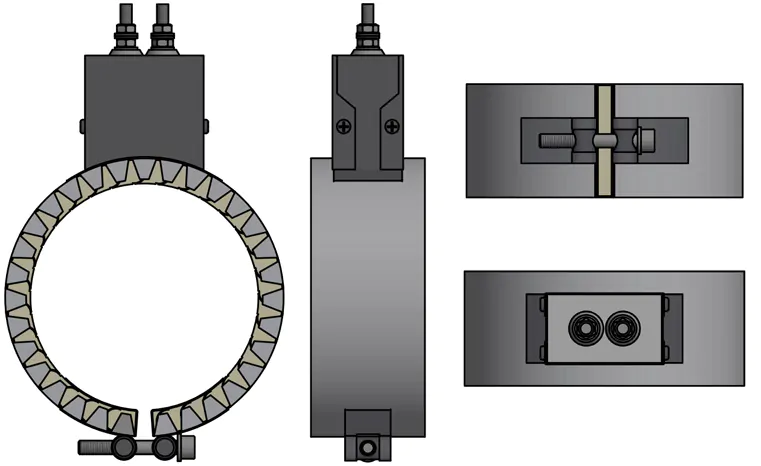

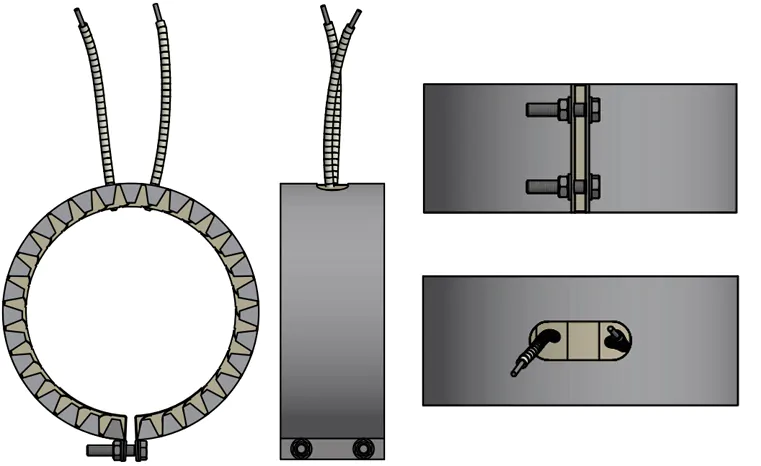

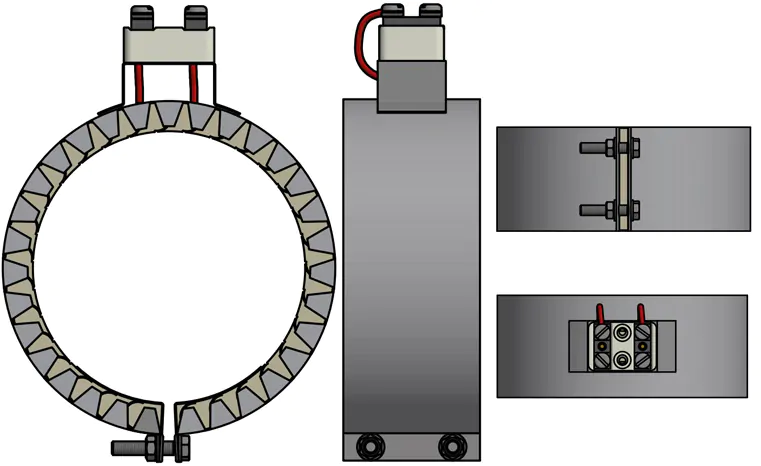

Connection types
Installation
When installing and operating metal heaters, it is worth remembering:
- A sufficient and uniform removal of thermal energy from the heater should be provided so that in the process it does not heat up over 400 °C. Otherwise, it can overheat and fail. This is achieved using clamping devices or mounting pasta.
- Also, the heated surface should be correct, without shells and protrusions, with the smallest roughness.
- The heater is leaky and cannot work in humid environments, however, the metal case provides sufficient protection with a slight moisture or plastic hit on its surface.
